Product Details:

Place of Origin: Henan, China
Brand Name: XME

Payment & Shipping Terms:

Minimum Order Quantity: 50 pieces
Price: $102.00/pieces >=50 pieces
Delivery Time: within 30 days
Payment Terms: T/T, L/C, D/P D/A, Cash
Get Best Price Contact Now

Detail Information
Part: Marine Exhaust Parts Exhaust Type: Dry Joint Manifold Kit
Engine Application: MerCruiser Engine Size: 4.3 V6
Accessories: Included Material: Cast Iron
Weight: 15.5 KG Packing Dimension: 430*200*230 Mm
Warranty: 3 Years Certificate: ISO9001
Replaces: MerCruiser 864612T01

Product Description

Specification

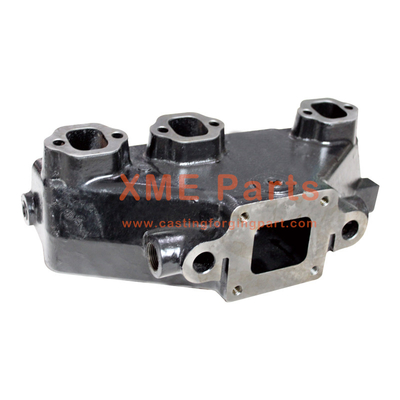

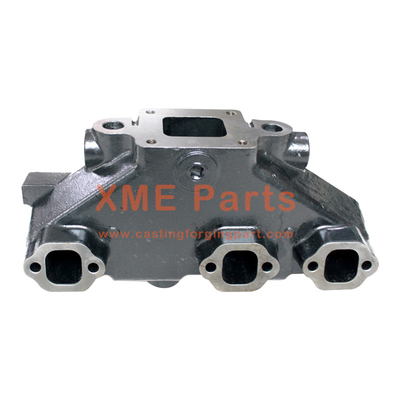

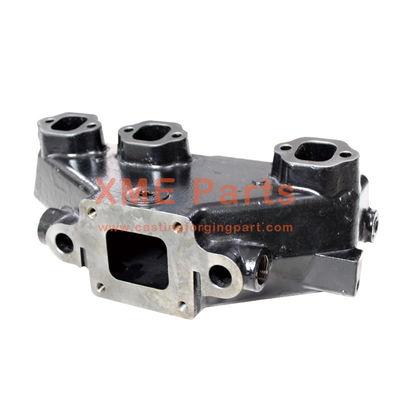

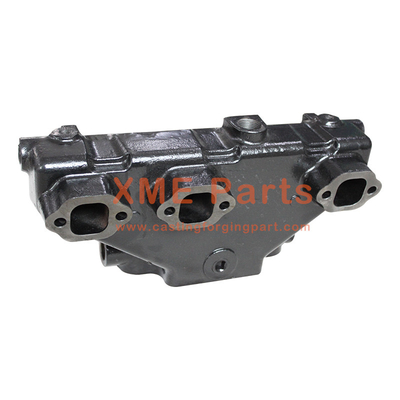

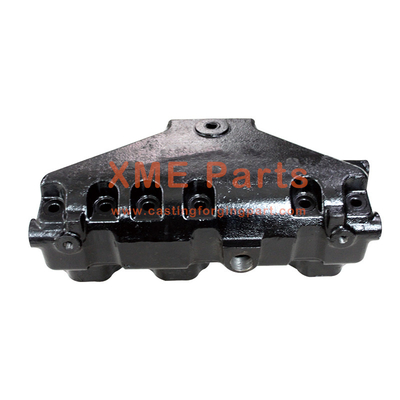

MerCruiser Dry Joint V-6 Manifold

For Mercruiser GM V6 4.3L engines with dry joint style exhaust manifolds 2002 and up Includes manifold to head gasket and mounting hardware Direct replacement for Mercruiser part number 864612T01 Replaces Mercruiser 864612T01 / Barr Marine MC-1-864612
Effective Dry Joint Manifold Kit for MerCruiser 4.3 V6 Engines 864612t01 Replacement 0
The manifold fits for following engines:
Engines
Mercruiser SB V6
GM 4.3 V6 Engines
Risers
XME 4309
4" exhaust outlet, 7° Down Angle, 6.72" in Height, Center Dry Joint Riser
HGE 4309
4" exhaust outlet, 7° Down Angle, 6.72" in Height, Center Dry Joint Riser
864309T02 864591T02
MerCruiser OEM ° Down Angle Dry Joint Exhaust Riser
MerCruiser OEM Tall Dry Joint Exhaust Riser
MC-20-864591
Barr Marine Dry Joint Exhaust Riser
9-40560
Mallory Dry Joint Exhaust Riser
Effective Dry Joint Manifold Kit for MerCruiser 4.3 V6 Engines 864612t01 Replacement 1

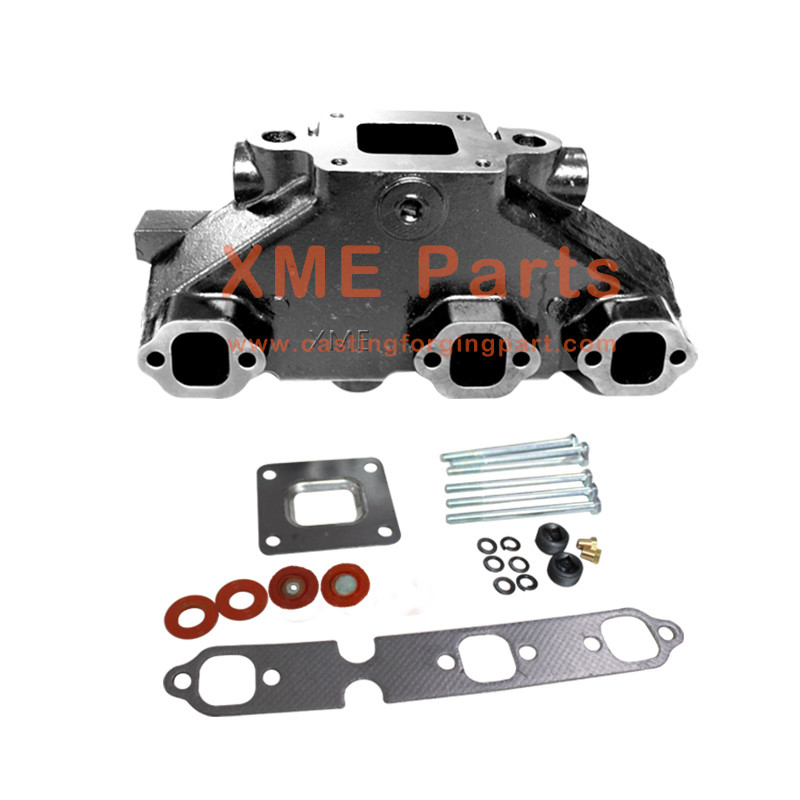

Content
Qty
 Manifold Gasket
1
Stainless Steel Plate Gasket
1
Open Seal Ring
2
Closed Seal Ring
2
Stud 3/8" - 16UNC x 5"; + Lock Washer
6
Steel Plug 3/4" NPT
2
Brass Plug 1/8" NPT
2
Company Profie

Xinlong Machinery and Equipment Co.,Ltd

XME Performance Parts, a company that in 2009, revolutionized the marine exhaust market by developing and perfecting an innovative casting process that allows components to be poured with exacting precision; eliminating traditional weak areas and producing a fit and finish that is unmatchable. Originally only available in private branded or OEM products, this same advanced process can now be found in our own brand of XME Performance Parts.
Combining this innovative process with our latest tooling, the XME brand of manifolds are produced with uniform wall thicknesses and clean exhaust passages; resulting in a product that outperforms the competition in both cooling and performance. Utilizing a high-grade cast iron that is continually tested to ensure proper mix and melt, structural integrity and strength are never compromised. Shot peened to smooth the external finish, all mounting surfaces are CNC machined to guarantee an exacting gasket mating surface. Every component is 100% leak tested, coated with a baked enamel finish, and protectively packaged for an out of the box, worry free installation.
Effective Dry Joint Manifold Kit for MerCruiser 4.3 V6 Engines 864612t01 Replacement 2
XME manifolds are designed to offer not only unmatched quality but do so at a competitive price. Please review our full lineup in our Parts Catalog to see why XME Performance Parts are the best exhaust products available.
Packaging&Shipping
All parts are packed by carton box individually, accessories are included.
