Xinlong Machinery Equipment (Zhengzhou) Co., Ltd. is a company specializing in the research and development as well as the production of trailer parts. The company currently employs over 100 people, with more than 20% being professional technical
personnel. Our products are exported to over 10 countries, including the United States, Canada, Switzerland, Australia, New Zealand, and Brazil, and have received unanimous praise for their quality from internationally renowned companies such as GKN and Dexter.
 |

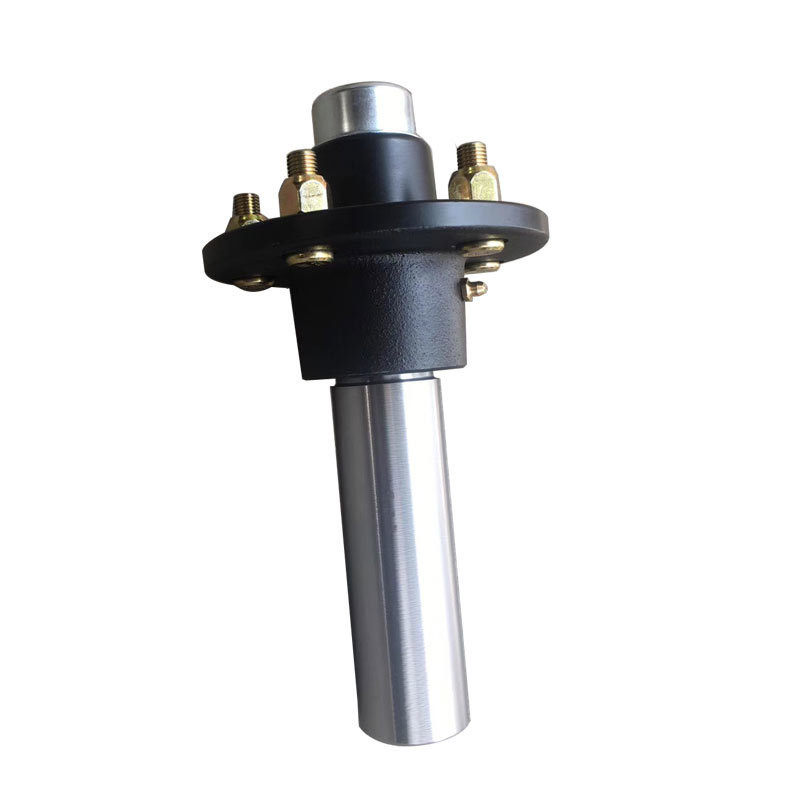

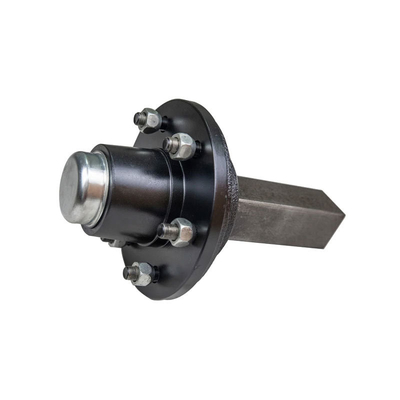

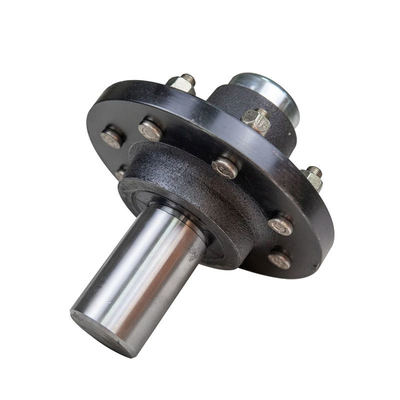

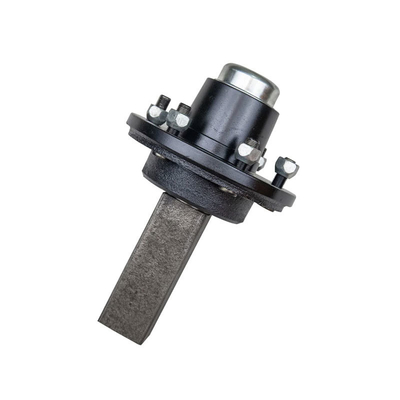

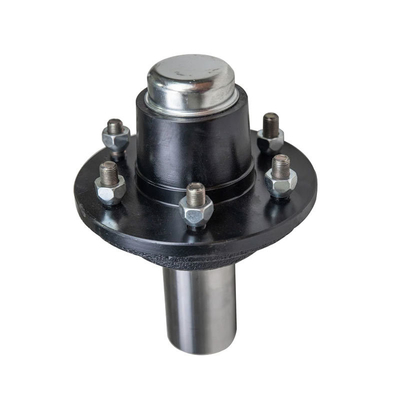

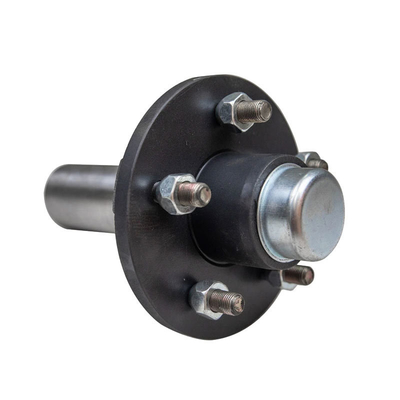

4 Bolt 5 Bolt 6 Bolt Light Utility Trailer Hub Assembly for 2000 lbs 7000 lbs Axle
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | XME |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | $8.00/pieces 100-499 pieces |
| Delivery Time: | within 30 days |
| Payment Terms: | T/T, L/C, D/P D/A, Cash |
|
Detail Information |
|||
| Use: | Trailer Parts | Purpose: | For Retrofit/upgrade |
|---|---|---|---|
| Condition: | New | Parts: | Trailer Axles |
| OE NO.: | Cargo | Max Payload: | 3500 Lbs |
| Size: | 4" - 6.5" | Product Name: | Trailer Hub Assembly |
| Finish: | Black Powder Coat Finish | Material: | Cast Iron |
| Max Capacity: | 6000 Lbs | ||
Product Description
Specifications
4 Bolt on 4" Trailer Hub - L44649 Bearings
Application: 2,000-lb trailer axles .Compatible with standard axles from most manufacturers, including Dexter, Lippert (LCI), and AL-KO
Weight Capacity | 1000 lbs |
Bolt Pattern | 4 on 4" |
Wheel Studs | 1/2" diameter x 1-5/16" long |
Race(included) | Inner race: L44610/ Outer race: L44610 |
Bearing | Inner bearing: L44649 (1.063" inner diameter) /Outer bearing: L44649 (1.063" inner diameter) |
4 Bolt on 4" Trailer Hub - L44643 Bearings
Application: 2,000-lb trailer axles Compatible with standard axles from most manufacturers, including Dexter, Lippert (LCI), and AL-KO
Weight Capacity | 1000 lbs |
Bolt Pattern | 4 on 4" |
Wheel Studs | 1/2" diameter x 1-5/16" long |
Race(included) | Inner race: L44610 /Outer race: L44610 |
Bearing | Inner bearing: L44643 (1" inner diameter) /Outer bearing: L44643 (1" inner diameter) |
5 Bolt on 4.5" Trailer Hub - L44643 Bearings
Application:2,000-lb axles. May also be used on 2500-lb axles with 1" spindle
Bolt Pattern(included) | 5 on 4-1/2 |
Wheel Studs | 1/2" diameter |
Weight Capacity | 1,250 lbs |
Inner/Ourter Race (included) | L44610 /L44610 |
Bearings | Inner bearing: L44643 (1.000" inner diameter) ,Outer bearing: L44643 (1.000" inner diameter) |
5 Bolt on 4.5" Trailer Hub - L68149 & L44649 Bearings
Application:3,500-lb trailer axles with #84 spindles .Compatible with standard axles from most manufacturers, including Dexter, Lippert (LCI), and AL-KO
Weight Capacity | 1750 lbs |
Bolt Pattern | 5 ON 4-1/2" |
Wheel Studs | 1/2" diameter x 1-5/16" long |
Race(included) | Inner race: L68111 / Outer race: L44610 |
Bearings | Inner bearing: L68149 (1.378" inner diameter) Outer bearing: L44649 (1.063" inner diameter) |
About Us
Xinlong Machinery and Equipment (Zhengzhou) Co ., Ltd
The factory covers an area of over 12,000 square meters. Our automatic casting line has an annual production capacity of 12,000 tons of various trailer parts. Our machining workshop is equipped with over 150 pieces of processing equipment, including CNC machines, milling machines, band saws, and Panasonic welding machines. Core high-end production equipment is imported from countries such as Germany and Japan. Currently, we can produce over 100 different specifications of trailer hubs, trailer brake drums, and trailer axles. These trailer parts are widely used in various fields, including camping trailers, boat trailers, and RVs, and are characterized by their compact structure, light weight, smooth operation, strong load-bearing capacity, and reliability.
Why Choose Us
High-Quality Materials
We use premium cast iron to ensure durability and load-bearing capacity.
Customization
Our company offers customized solutions, allowing us to meet the specific needs and preferences of our clients.
Advanced Production Facilities
With over 20 years of experience and an automated molding line, we can produce over 30,000 units daily, ensuring high efficiency and consistency.
Reliability
Our trailer wheel hubs undergo rigorous quality control measures, guaranteeing reliability and performance in various applications.
Packing & Delivery
Our products are all packed in wooden cases to ensure zero damage. If customers have specific requirements for the packaging, we will gladly accommodate. The products will be sent to you within 30 days and we will arrange everything from the initial consultation to the delivery of your chosen port anywhere the world.
Packing Details :plywood case + Steel pallet
We can also customize the packing method according to customers' needs.
