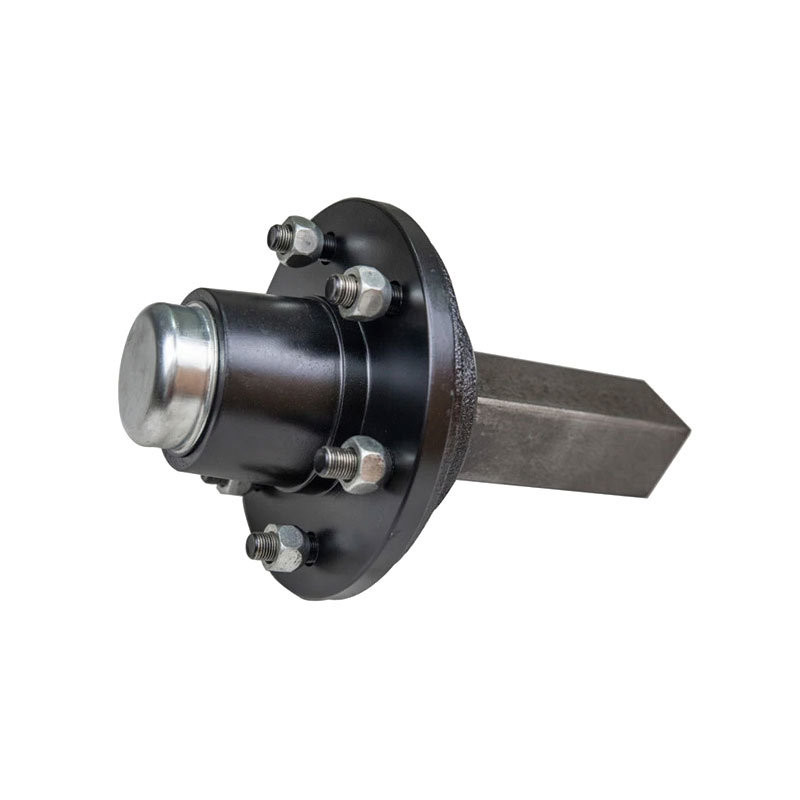

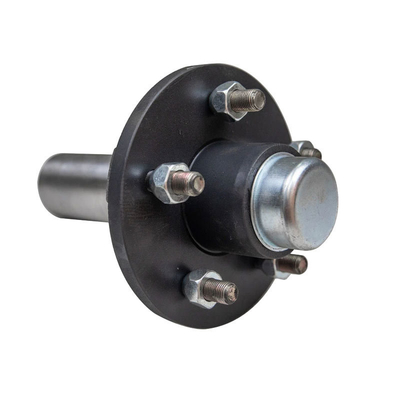

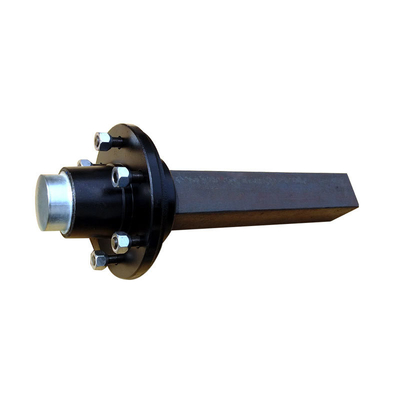

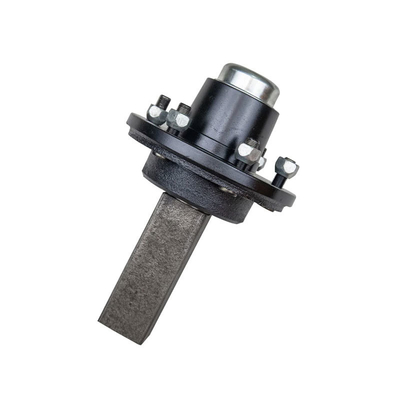

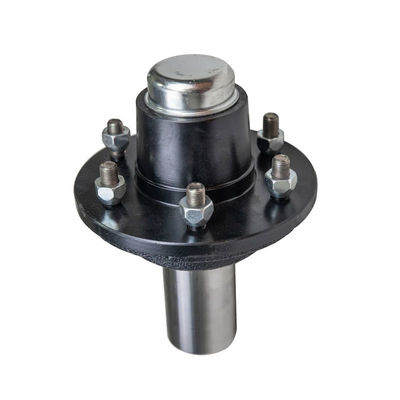

Trailer Axles Parts 4 Bolt 5 Bolt 6 Bolt Stub Axle and Hub with 3500 lbs Max Payload
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | XME |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | $7.00 - $12.00/pieces |
| Packaging Details: | plywood case + Steel pallet<br>Suitable for seaway transportation |
| Delivery Time: | within 30 days |
| Payment Terms: | T/T, L/C, D/P D/A, Cash |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Use: | Trailer Parts | Parts: | Trailer Axles |
|---|---|---|---|
| Max Payload: | 3500 Lbs | Product Name: | Trailer Stub Axle And Hub |
| Manufacturer: | XME | Port: | Qingdao/shanghai |
Product Description
Specifications
4 Bolt on 4" Trailer Hub - L44649 Bearings
Application: 2,000-lb trailer axles .Compatible with standard axles from most manufacturers, including Dexter, Lippert (LCI), and AL-KO
Weight Capacity | 1000 lbs |
Bolt Pattern | 4 on 4" |
Wheel Studs | 1/2" diameter x 1-5/16" long |
Race(included) | Inner race: L44610/ Outer race: L44610 |
Bearing | Inner bearing: L44649 (1.063" inner diameter) /Outer bearing: L44649 (1.063" inner diameter) |
4 Bolt on 4" Trailer Hub - L44643 Bearings
Application: 2,000-lb trailer axles Compatible with standard axles from most manufacturers, including Dexter, Lippert (LCI), and AL-KO
Weight Capacity | 1000 lbs |
Bolt Pattern | 4 on 4" |
Wheel Studs | 1/2" diameter x 1-5/16" long |
Race(included) | Inner race: L44610 /Outer race: L44610 |
Bearing | Inner bearing: L44643 (1" inner diameter) /Outer bearing: L44643 (1" inner diameter) |
5 Bolt on 4.5" Trailer Hub - L44643 Bearings
Application:2,000-lb axles. May also be used on 2500-lb axles with 1" spindle
Bolt Pattern(included) | 5 on 4-1/2 |
Wheel Studs | 1/2" diameter |
Weight Capacity | 1,250 lbs |
Inner/Ourter Race (included) | L44610 /L44610 |
Bearings | Inner bearing: L44643 (1.000" inner diameter) ,Outer bearing: L44643 (1.000" inner diameter) |
5 Bolt on 4.5" Trailer Hub - L68149 & L44649 Bearings
Application:3,500-lb trailer axles with #84 spindles .Compatible with standard axles from most manufacturers, including Dexter, Lippert (LCI), and AL-KO
Weight Capacity | 1750 lbs |
Bolt Pattern | 5 ON 4-1/2" |
Wheel Studs | 1/2" diameter x 1-5/16" long |
Race(included) | Inner race: L68111 / Outer race: L44610 |
Bearings | Inner bearing: L68149 (1.378" inner diameter) Outer bearing: L44649 (1.063" inner diameter) |
Hareware Specifications
We can provide the following trailer hub assembly components: trailer spindle(complete or stub axle), inner bearing and seat ring, outer bearing and seat ring, including grease seal ring, grease cover and lug nut.If you need these accessories, please contact our staff.
Trailer short shaft size needs to be customized according to customer requirements
We can provide the trailer hub kits, or we can provide you with the assembled trailer axle
About Us
XINLONG MACHINERY&EQUIPMENT CO.,LTD
Xinlong Machinery is a professional trailer parts manufacturer with more than 20 years of experience in the manufacture of trailer parts. We are mainly engaged in the customization of trailer components, especially trailer axles, trailer brake drums, trailer hubs, and trailer equalizers. With modern production equipment and experienced technical team, we ensure that only the highest quality products can reach customers.
Packing & Delivery
Our products are all packed in wooden cases to ensure zero damage. If customers have specific requirements for the packaging, we will gladly accommodate. The products will be sent to you within 30 days and we will arrange everything from the initial consultation to the delivery of your chosen port anywhere the world.
Packing Details :plywood case + Steel pallet
We can also customize the packing method according to customers' needs.
Want to Know more details about this product
