Die Forging Process OEM Forged Rocker Arm for Automotive and Motorcycle Components
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | XME |
| Model Number: | Non-Standard |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 pieces |
|---|---|
| Price: | $5.00 - $8.00/pieces |
| Delivery Time: | within 30 days |
| Payment Terms: | T/T, L/C, D/P D/A, Cash |
|
Detail Information |
|||
| Application: | Automotive Spare Parts | Material: | Alloy Steel |
|---|---|---|---|
| Porcess: | Die Forging | ||
Product Description
Product Details

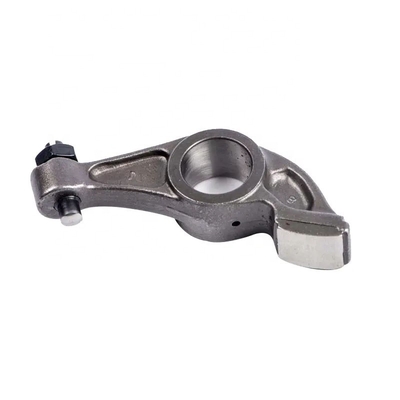

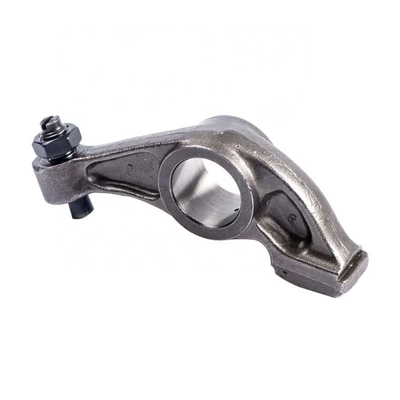

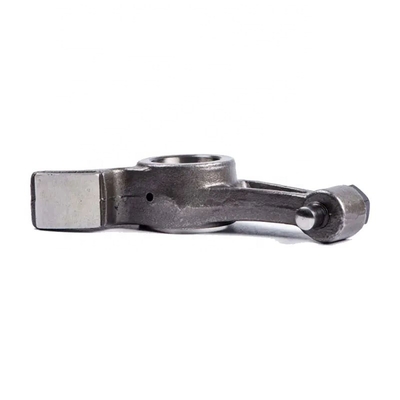

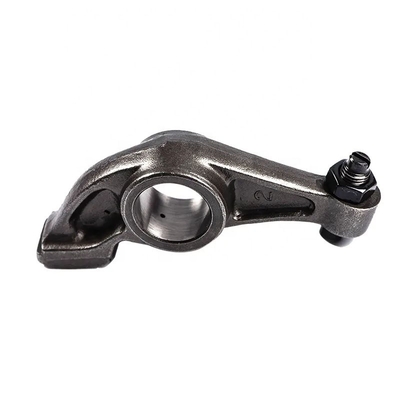

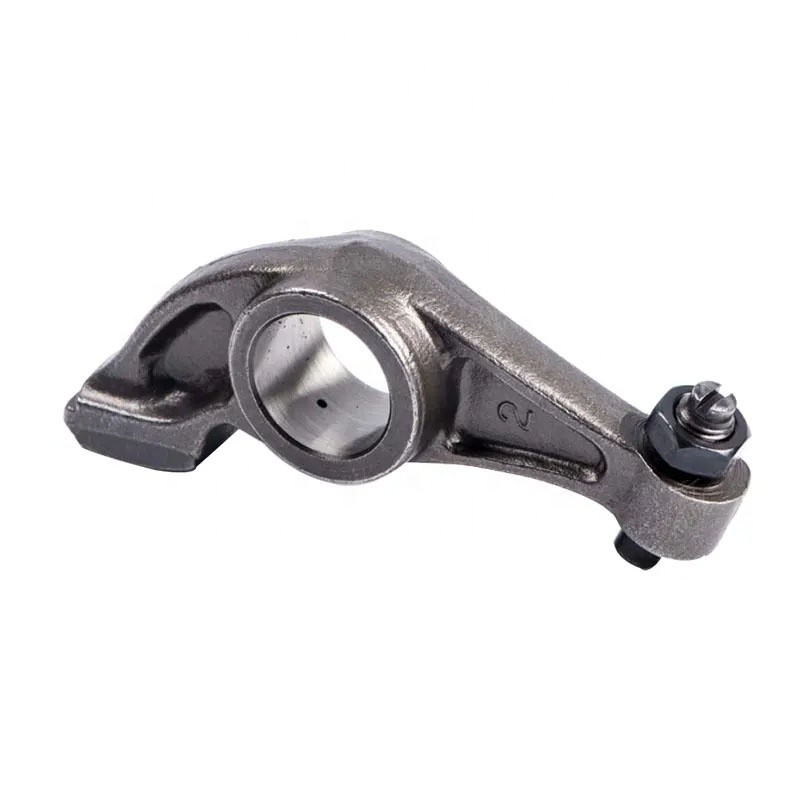

The Rocker Arm (also known as the Rocker Shaft) is a critical component in an internal combustion engine. Its primary function is to convert the rotational motion of the camshaft into the up-and-down motion of the valves, thereby controlling the intake and exhaust processes of the cylinder. Due to its requirement for high mechanical performance, the forging process should aim to achieve a good metal flow pattern and minimize defects as much as possible.
We use advanced floating die closure forging technology to produce various types of rocker arms, including single rocker arms,double rocker arms, and roller rocker arms. The use of this new technology allows our rocker arm forgings to achieve higher precision and require less machining.
Company Profile
XINLONG FORGING
XINLONG Machinery is a professional closed die forging manufacturer & exporter. We specializes in producing all kinds of forging components involved in mining machinery, construction machinery, automotive components, oil & gas industry, etc. Our forgings range from 0.05kg to 100kg
The traditional processing method involves ordinary forging followed by machining, which is costly, inefficient, and results in a material utilization rate of less than 40% on average. Additionally, machining disrupts the metal flow lines, thereby reducing the mechanical properties of critical areas. We use advanced floating die closure forging technology, characterized by closing the mold before forging. This process involves the upper and lower molds closing to form a sealed cavity, applying a certain clamping force on the parting surface, and then extruding the metal billet placed in the sealed cavity from one or multiple directions using an extrusion punch, producing near-net-shape precision forgings without flash. This process not only improves material utilization and simplifies procedures but also achieves precise parts with good microstructure and performance with relatively low forming force. As a result, the quality, precision, and mechanical properties of the forgings are significantly improved, offering high economic and practical value. For example, the torsional fatigue life of rocker shafts produced using this closed die extrusion process is, on average, 2-3 times higher than that of parts produced using conventional forging and machining.
Automated Cropping
Automated Heating
Automated Billet-Rolled
Automated Forging
Automated Lubricants-Spraying
Automated Deburring
Quality Control
Various Test to be provided
The most direct quality control is testing equiments. We have completed testing equipments here in our factory like spectrograph,hardness tester, CMM, ect. All these testing datas will be recorded in the testing reports and sent to our customers for checking.if they are within the range.
We promise that all products undergo 100% fully inspection!!!
Checkour equipment | Quantity | Other equipment | Quantity |
3-coordinate measuring | 1 | Trolley-type reistance furnace | 3 |
Tensile testing machine | 1 | Well type anneling furnace | 3 |
Impact testing Machine | 1 | Roughness instrument | 1 |
Fluorescent mangetic detector | 1 | Brinell hardness tester | 3 |
Metallorgraphy image Analyzer | 1 | Hardness tester | 1 |
Sample Inspection
Fully inspection
3-Coordinate
Universal Testing Machine
Impact Testing Machine
Magnetc Powder flaw Detectector
Salt Spray Test Chamber
Hardness Tester
Metallorgraphy Image Analyzer
Packing & Delivery
Our products are all packed in wooden cases to ensure zero damage. If customers have specific requirements for the packaging, we will gladly accommodate. The products will be sent to you within 30 days and we will arrange everything from the initial consultation to the delivery of your chosen port anywhere the world.
