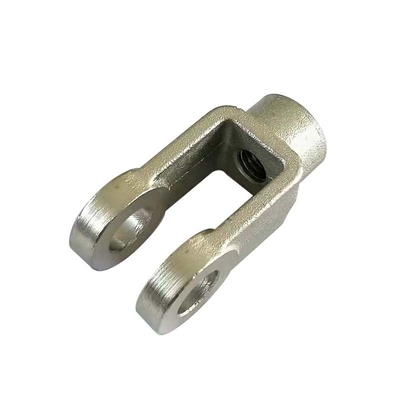

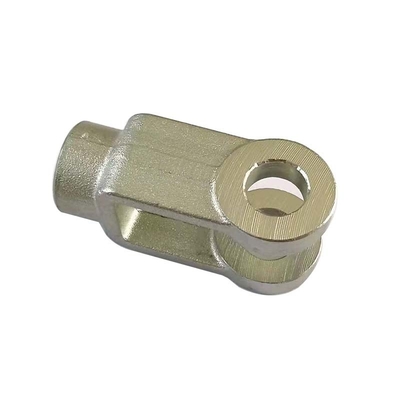

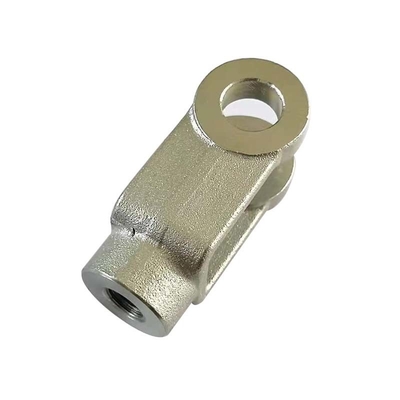

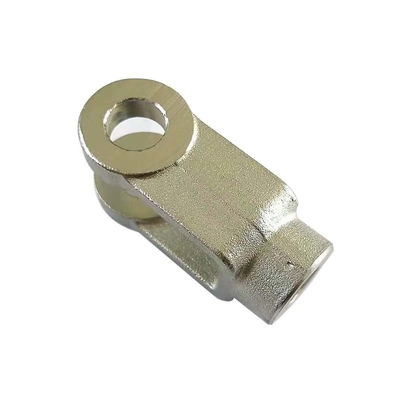

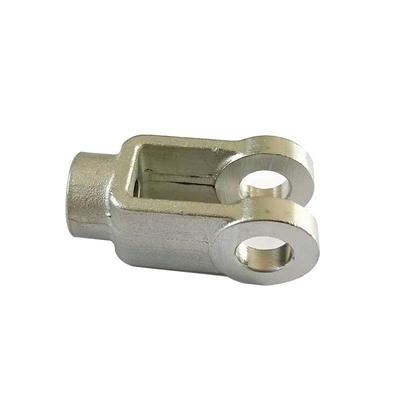

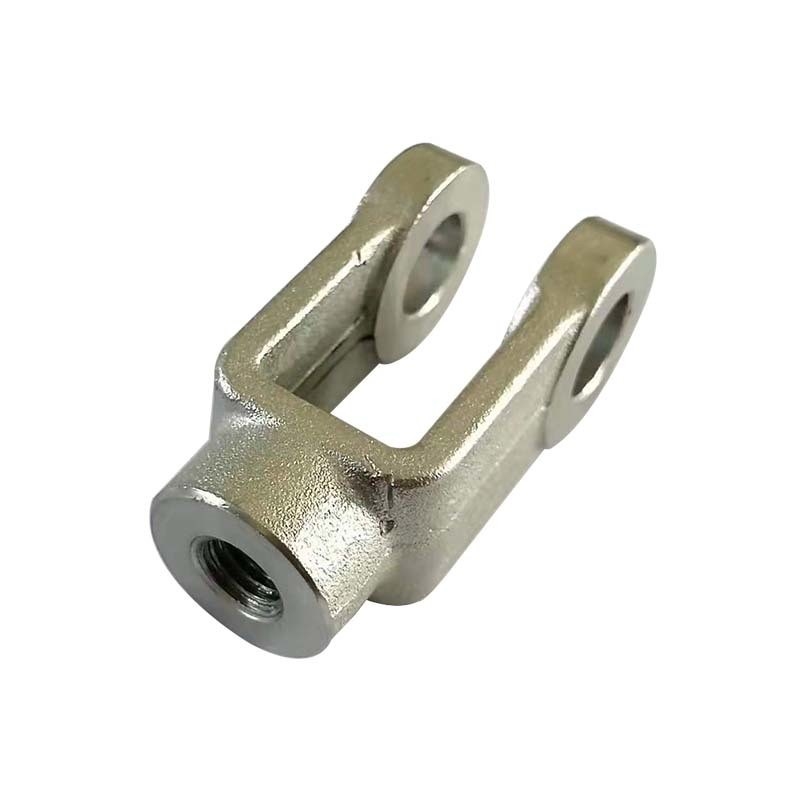

Stainless Steel High Precision Forging Auto Parts Die Forging
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | XME |
| Model Number: | OEM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 pieces |
|---|---|
| Price: | $2.00 - $5.00/pieces |
| Packaging Details: | plywood case + Steel pallet<br>Suitable for seaway transportation |
| Delivery Time: | within 30 days |
| Payment Terms: | T/T, L/C, D/P D/A, Cash |
| Supply Ability: | 50000 Piece/Pieces per Month |
|
Detail Information |
|||
| Product Name: | Forged Auto Parts | Service Type: | Customized Service |
|---|---|---|---|
| Process: | Die Forging | Machining: | Included |
| Materials Available: | Carbon Steel, Alloy Steel, Stainless Steel | Surface Treatment: | Customers' Requirements |
| Inspection: | 100% Before Shipment | Package: | Standard Wooden Pallet |
| Application: | Auto Spare Part | Brand: | XME |
| Port: | Qingdao/shanghai | ||
Product Description
Product Details
YOUR IDEA + XME = HIGH QUALITY PRODUCT
Consistent strength and durability are qualities that can be achieved through the forging process. XME can supply you with the shapes and sizes you need.
|
Carbon Steel Forging
|
1020 Steel, 1035 Steel,1045 Steel, A105, Q235, Q345, 20CrMnTi,ect
|
|
Alloy Steel Forging
|
20Cr, 20CrMo, 30CrMo, 35CrMo, 42CrMo,ect
|
|
Stainless Steel Forging
|
1.4301, 1.4401, 1.4571, AISI 304, AISI 304L, AISI 316, AISI 316L, AISI 316Ti, etc.
|
|
Forging Weight
|
0.1-50 Kg
|
|
Forging Diameter Range
|
5mm – 600mm
|
|
Forging Tolerance
|
DIN 7526
|
|
Forging Surface Roughness
|
Ra 6.3
|
|
Machining Tolerance
|
0.01mm
|
|
Heat Treatment
|
Solution, Annealing, Quenching, Tempering, Aging, etc.
|
|
Surface Treatment
|
Pickling, Passivation, Sand-blasting, Shot-blasting, Electro-polishing, Buffing, Mirror-polishing, Galvanization, Zinc-plating,
Nickle-plating, Chrome-plating, Anodization, Coat in g, Painting, Black phosphating, Electrophoresis, etc. |
|
Special Inspection
|
Leakage test, Shell Strength test, Radiographic test, Ultrasonic test, Magnetic test, Liquid penetration test, Salt spray test,
etc. |
|
Quality Documents
|
Measuring report, EN 10204 3.1 material certificate, PPAP, APQP, FMEA, etc
|
Company Profile
XINLONG FORGING
XINLONG Machinery is a professional closed die forging manufacturer & exporter. We specializes in producing all kinds of forging components involved in mining machinery, construction machinery, automotive components, oil & gas industry, etc. Our forgings range from 0.05kg to 100kg
Our Advantages
Our manufacturing capabilities cover the entire forging component production process, from tooling design and manufacturing, forging, secondary machining, heat treatment, surface treatment to finishing, enabling us to offer ready-to-use products and services to customers.
Quality Control
Various Test to be provided
The most direct quality control is testing equiments. We have completed testing equipments here in our factory like spectrograph,hardness tester, CMM, ect. All these testing datas will be recorded in the testing reports and sent to our customers for checking.if they are within the range.
We promise that all products undergo 100% fully inspection!!!
|
Checkour equipment
|
Quantity
|
Other equipment
|
Quantity
|
|
3-coordinate measuring
|
1
|
Trolley-type reistance furnace
|
3
|
|
Tensile testing machine
|
1
|
Well type anneling furnace
|
3
|
|
Impact testing Machine
|
1
|
Roughness instrument
|
1
|
|
Fluorescent mangetic detector
|
1
|
Brinell hardness tester
|
3
|
|
Metallorgraphy image Analyzer
|
1
|
Hardness tester
|
1
|
Sample Inspection
Fully inspection
3-Coordinate
Universal Testing Machine
Impact Testing Machine
Magnetc Powder flaw Detectector
Salt Spray Test Chamber
Hardness Tester
Metallorgraphy Image Analyzer
Packing & Delivery
Our products are all packed in wooden cases to ensure zero damage. If customers have specific requirements for the packaging, we will gladly accommodate. The products will be sent to you within 30 days and we will arrange everything from the initial consultation to the delivery of your chosen port anywhere the world.
