Trailer Axles Standard Cast Iron E-1 Trailer Equalizer For Trailer Parts
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | XME |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1000 pieces |
|---|---|
| Price: | $1.99/pieces >=1000 pieces |
| Delivery Time: | within 30 days |
| Payment Terms: | T/T, L/C, D/P D/A, Cash |
|
Detail Information |
|||
| Use: | Trailer Parts | Purpose: | For Retrofit/upgrade |
|---|---|---|---|
| Condition: | New | Parts: | Trailer Axles |
| OE NO.: | E-1 | Max Payload: | 7000 LBS |
| Material: | Cast Iron | Weight: | 1.21 Kg |
| Application: | Light Trailer | ||
Product Description
Product Description
SPECIFICATIONS:
※ Fits 1-3/4" wide, double-eye leaf springs with 9/16" spring eyes
※ Center bolt hole diameter: 9/16"
※ Left and right bolt hole diameter: 9/16"
※ Dimensions: see diagram below:
※ Center bolt hole diameter: 9/16"
※ Left and right bolt hole diameter: 9/16"
※ Dimensions: see diagram below:

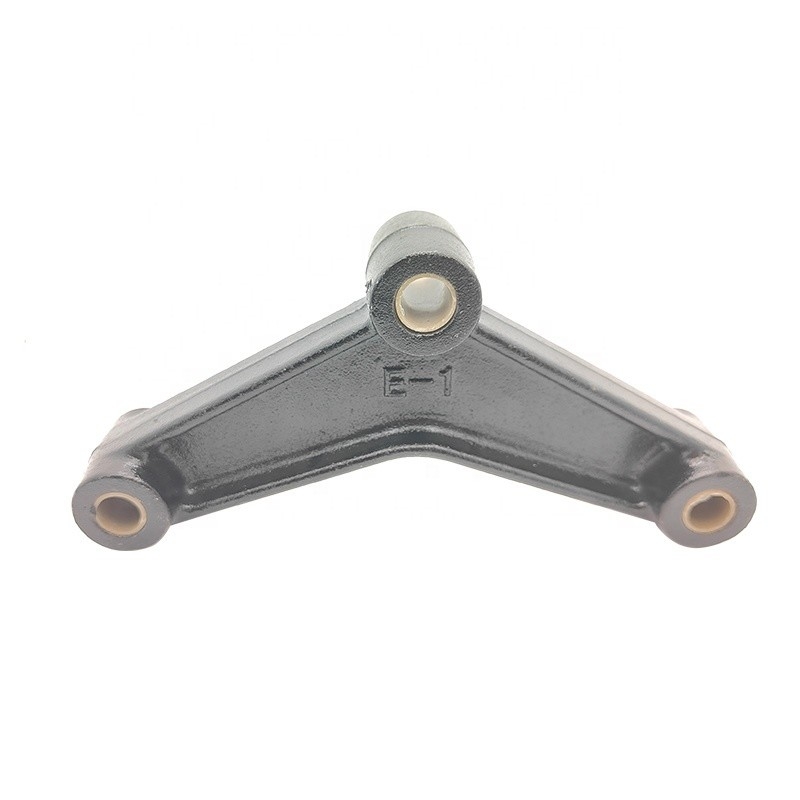

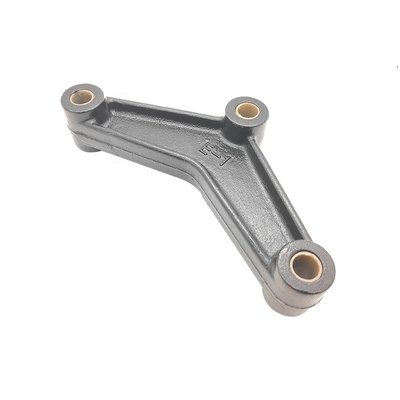

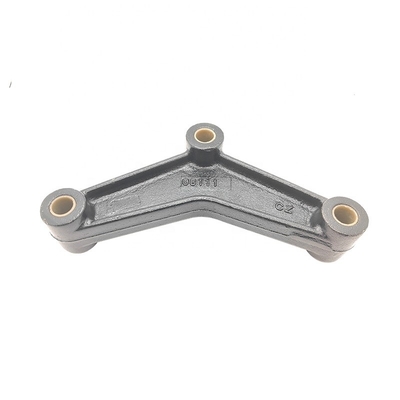

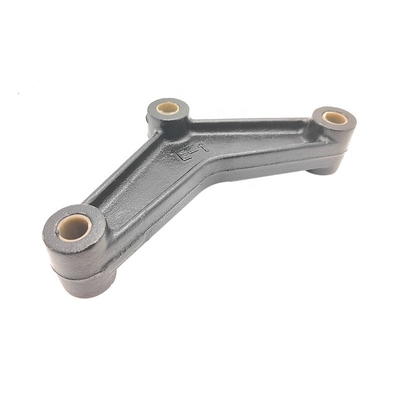

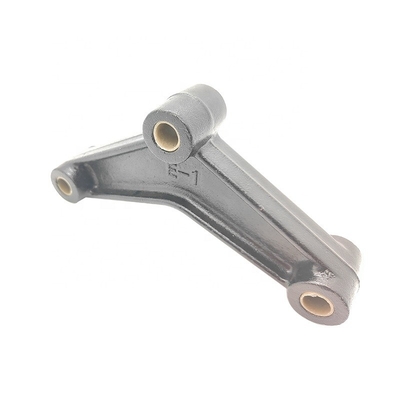

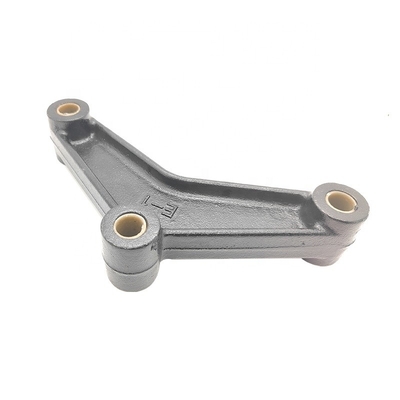

Trailer Suspension Equalizer - EQ-E1
7-3/4" Long curved equalizer connects double-eye springs on tandem or triple axle trailers and allows for enough movement between the axles to keep the ride smooth and the load undisturbed. Center bolt hole is 9/16" in diameter.
Why Choose Us?
MACHINERY
Xinlong Machinery & Equipment Co., Ltd has been manufacturing and exporting castings and forgings for more than 20 years. Most of XME’s products were sent to U.S.A., Canada, Germany, Denmark, England, Norway, Sweden, Switzerland, Italy, Spain and many other districts. Great reputation spreads in North American, Europe and South Africa, especially in John Deere, Dexter Axle and GKN.
Packaging&Shipping
Our products are all packed in wooden cases to ensure zero damage. If customers have specific requirements for the packaging, we will gladly accommodate. The products will be sent to you within 30 days and we will arrange everything from the initial consultation to the delivery of your chosen port anywhere the world.
Want to Know more details about this product
