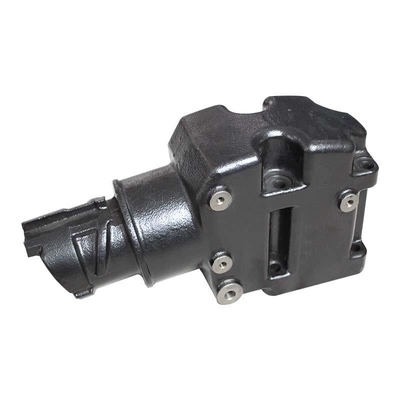

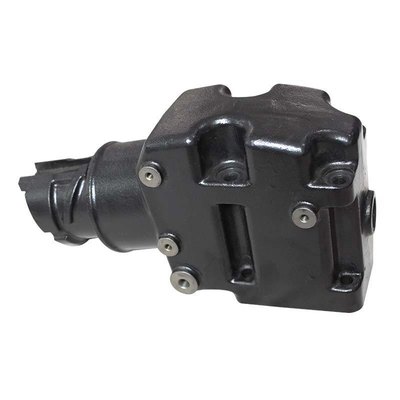

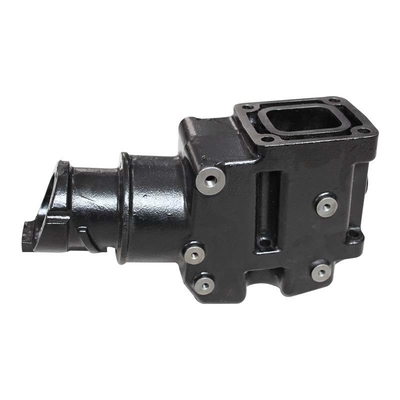

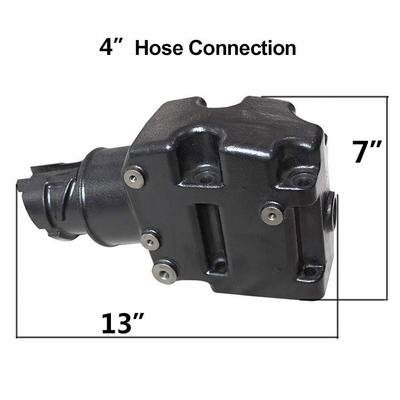

Foundry OEM Ductile Iron Casting Astm A536 65-45-12 Customized Solution
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | XME |
| Model Number: | Various |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 pieces |
|---|---|
| Price: | $1.00 - $20.00/pieces |
| Packaging Details: | plywood case + steel pallet <br>Suitable for sea way transportation |
| Delivery Time: | within 30 days |
| Payment Terms: | T/T, L/C, D/P D/A, Cash |
| Supply Ability: | 15000 Ton/Tons per Year |
|
Detail Information |
|||
| Material: | Iron | Application: | Machinery Parts |
|---|---|---|---|
| Dimensions: | Cusotmers' Drawings | Material Grade: | Ductile Iron Casting Astm A536 65-45-12 |
| Port: | QingDao/ShangHai/NingBo | ||
Product Description
Advantages of Ductile Iron
There are several advantages that ductile iron provides designers:
1.Ductile iron can be easily cast and machined.
2.It has an excellent strength to weight ratio.
3.Ductile iron can be made for a much lower cost than steel.
4.It has superior castability and machinability.
5.Ductile iron provides a designer with an exceptional combination of toughness, low cost manufacturing, and reliability.
Ductile Iron Grade
While there are many different ductile iron specifications, foundries routinely offer 3 common grades;
|
Physical and Mechanical Properties
|
ASTM A536, Grade 60-40-18
|
ASTM A536, Grade 65-45-12
|
ASTM A536, Grade 80-55-06
|
|
Tensile Strength, min, psi
|
60,000
|
65,000
|
80,000
|
|
Tensile Strength, min, MPa
|
414
|
448
|
552
|
|
Yield Strength, min, psi
|
40,000
|
45000
|
55000
|
|
Yield Strength, min, MPa
|
276
|
310
|
379
|
|
Elongation in 2 in. or 50 mm, min %
|
18
|
12
|
6
|
|
Density lb/in3
|
0.256
|
0.256
|
0.256
|
|
Density g/cm3
|
7.1
|
7.1
|
7.1
|
|
Melting Temperature (Degrees F)
|
2,100 – 2,190
|
2,100 – 2,190
|
2,100 – 2,190
|
|
Melting Temperature (Degrees C)
|
1,150 - 1,200
|
1,150 - 1,200
|
1,150 - 1,200
|
|
Compressive Strength Ksi
|
429
|
429
|
429
|
|
Compressive Strength MPa
|
2960
|
2960
|
2960
|
|
UNS
|
F32800
|
F33100
|
F33800
|
Custom Casting Services
Reliance Foundry works collaboratively with clients to determine the best material for each custom casting. Request a Quote to get more information on how our casting service can match your project requirements.
XME is an iron foundry in Henan province. We began operations in 1995 and have dedicated ourselves to being the best iron foundry in Henan ever since. We manufacture ductile iron castings and gray iron castings for agricultural machinery, industrial equipment, hydraulic valves & cylinders, construction equipment and industrial valves.
The company owns 10x automatic moulding lines, including 2x DISA moulding lines imported from Denmark. We can produce cast iron parts from 0.5 kg to 5000 kgs. Their material are GGG400-15, GGG400-18, GGG500-7, GGG600-3, GGG700-2 and GG200, GG250, GG300. There are also painting production line, powder coating production line, electrophoretic paint production line in our fountry. We can supply machined castings with the surface treatment powder coating, electrophoretic paint, electric zinc plated, hot dip galvanized and Dacromet as the customers' requirements.
ISO 9001-2015 Certified Foundry
XME Foundry implemented and maintains a Quality Management System and is registered to ISO 9001 and ISO/TS 16949 at all foundry locations.
Our quality assurance processes include monitoring and testing the following:
*Green Sand Control System
*Brinell Hardness Testing*Tensile Testing
*Chemical Composition
*Dimensional Inspection
Packing Details: plywood case + Steel pallet
We can also customize the packing method according to customers' needs.
Delivery Details:Sea or air transport
